CO2 laser marking machines for cutting, scribing, drilling and surface processing
MULTISCAN®
Clean, ink-free production lines
MULTISCAN® CO2 laser marking machines offer inkless marking of alphanumeric text, QR codes, barcodes and complex graphics to a wide array of materials.
Static or on the fly marking
MULTISCAN® has flexible software that places intelligent data anywhere within the specified scan area. It can also mark stationary objects or products on the fly.
Low maintenance – fit and forget
Equipped with an integrated RF power supply that is detachable and fully serviceable in the field. Its small footprint and articulated arm allow easy integration into existing production lines.
MULTISCAN® CO2 laser systems
Three CO2 laser marking machines. One proven platform.
The MULTISCAN® range covers a wide spectrum of marking and processing applications. Whether you need washdown-resistant coding, higher laser power for industrial cutting, or a compact mobile unit, there is a MULTISCAN® model built for it.

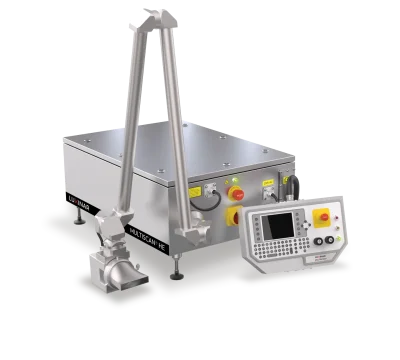

MULTISCAN® HE
Laser coding in harsh environments
The MULTISCAN® HE is a CO2 laser marking machine specifically developed for harsh environments such as the beverage industry, where liquids or dust may be present. Its IP66 rating means that it works on production lines which must be regularly washed down to comply with strict hygiene regulations.
- IP66 rating to withstand harsh environments (humidity, dust, water)
- More than 75,000 bottles per hour
- 1.6 m articulated arm for ease of siting
- Remote keyboard and display

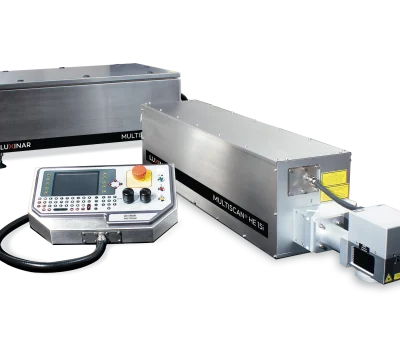

MULTISCAN® HE 10i/15i/25i
Modular laser processing solution for cutting and ablation processes
The MULTISCAN® HE 10i/15i/25i is a higher laser power alternative to the MULTISCAN® HE and consists of separate laser and control enclosures and a range of beam delivery options. It is ideally suited to harsh environments which require higher laser power, such as the textiles industry.
- 125 W, 175 W and 250 W rated laser output powers
- Fixed or articulated beam delivery options
- Remote keyboard and display
- IP66 rated option (control cabinet)

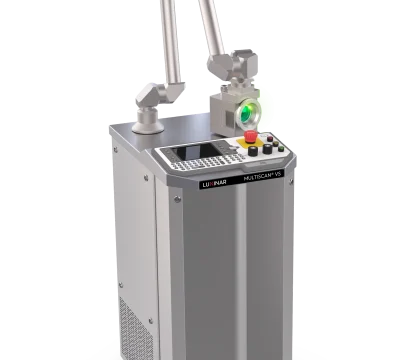

MULTISCAN® VS
A compact mobile CO2 laser marking system
The MULTISCAN® VS provides a compact, mobile solution to laser coding. Designed as a fully integrated system, it incorporates the laser, beam delivery, cooling and control systems into a single compact unit. Its small footprint and articulated arm make for easy integration into existing production lines.
- Up to 1,200 characters per second
- Fully integrated and self-contained unit
- Compact and mobile, with small footprint
- 1.2 m articulated arm
High-speed ink-free marking
MULTISCAN® CO2 laser marking machines keep production lines clean and ink-free
MULTISCAN® is built for high-volume production where speed and uptime matter.
- Marks up to 1,200 characters per second
- Static or on the fly marking, cutting, scribing, drilling and surface processing
- Large scan area, up to 250x250 mm
- High quality vector generation for precise rendering of graphics
- Low maintenance – fit and forget
- Available in three wavelengths – 10.6 µm, 10.25 µm and 9.3 µm
- Larger scan areas and long codes available on request
Discover the MULTISCAN® CO2 laser marking machine range for your application.
High-speed non-contact marking
CO2 laser marking machine applications: marking, perforating, scribing and more

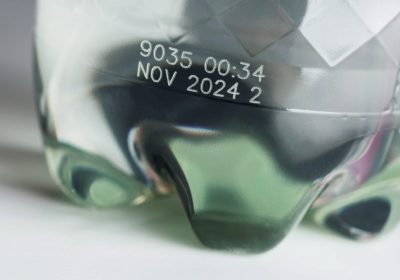

High-speed beverage marking
The MULTISCAN® HE CO2 laser marking machine is IP66-rated for harsh environments and washdown. Galvo technology ensures fast production line speeds without compromising mark quality or reliability.

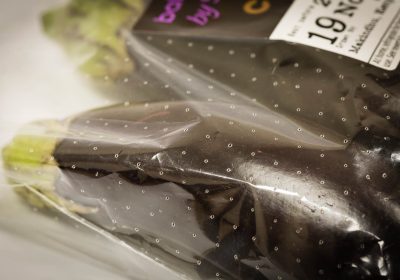

Perforating plastic packaging films
This CO2 laser marking system increases the shelf life of fresh food by regulating the levels of gases inside the pack.

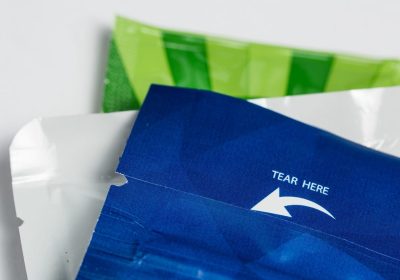

Easy-tear scribing
MULTISCAN® creates easy opening food pouches and sachets by selectively weakening the packaging material, enabling it to tear easily along the scribed line.

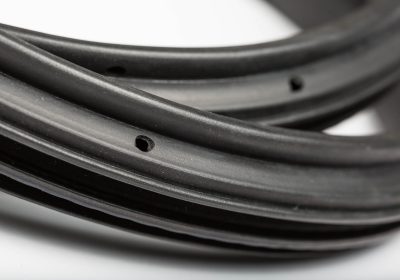

Drilling and marking for the automotive industry
Drainage holes in rubber seals around car doors or tailgates are drilled on the fly using MULTISCAN®. The laser also marks automotive parts such as plastic components or windows.
Advantages
A modular laser processing solution for the MULTISCAN® HE laser range - MULTISCAN® HE 10i, 15i and 25i
Higher power, modular design. The MULTISCAN® HE i-series is a CO2 laser marking machine that adapts to demanding environments and complex installation requirements.
- Higher laser power alternatives
- Separate laser and control enclosures, remote keyboard and display and a range of beam delivery options
- 125 W, 175 W and 250 W rated laser output powers
- More installation possibilities
- Ideally suited to harsh environments that require higher laser power, such as the textiles industry
- A choice of short, fixed or long articulated beam delivery
- Short optical path beam delivery and scanner options in various orientations to suit the application
