SR AOM CO2 lasers for high modulation speeds
SR AOM CO₂ laser series

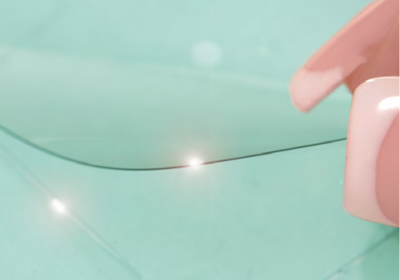

High-precision microfilm cutting and drilling
Cut cleanly without thermal damage, delamination, or edge defects on LCD, OLED, PDLCD, touch panels at modulation frequencies up to 600 kHz
Low heat-affected zone (HAZ) applications
The CO2 laser with integrated AOM creates optical rise and fall times of less than 1µs which minimizes unnecessary heat input from typical pulse rise/fall times of approximately 60µs.
High-quality cutting- edge applications
A higher quality machined finish with less HAZ compared to a standard pulsed CO2 laser.
SR AOM sealed CO2 lasers
Faster scan speeds &/or a reduced HAZ with AOM lasers

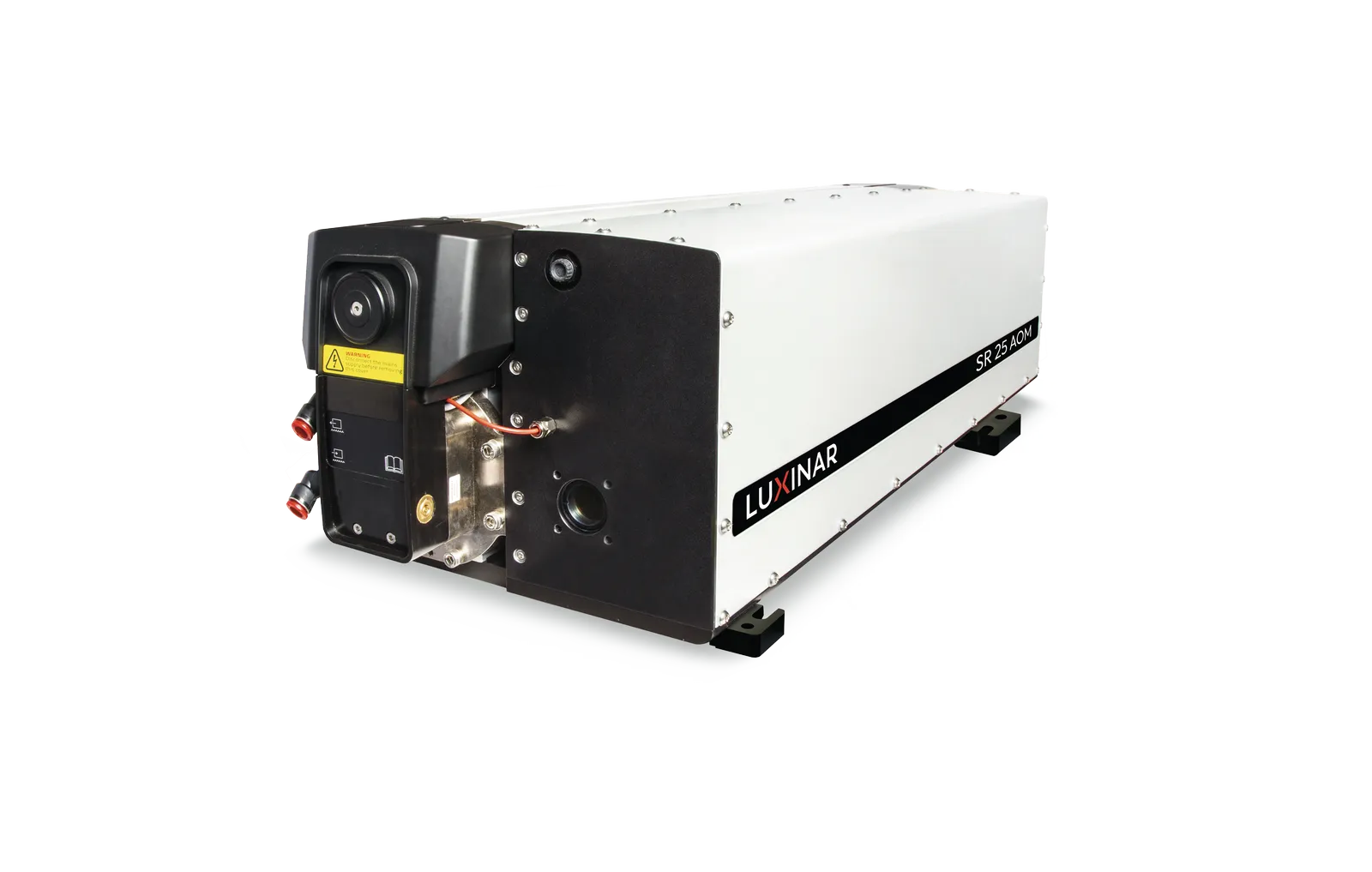

The SR 10 AOM and SR 25 AOM laser, both available at a wavelength of 9.3 µm and with rated powers of 150 W for the SR 25 AOM and 75 W for the SR 10 AOM, add value to the established SR series of sealed CO2 laser sources from Luxinar.
The integrated acousto-optic modulator (AOM) creates 60 times faster optical rise and fall times of less than 1 µs, which can minimize unnecessary heat energy from typical pulse rise/fall times of approximately 60 µs.
The AOM laser range provides superior pulse-to-pulse control, output power stability and modulation frequency up to 600 kHz.
The SR AOM’s simple control interface and compact mechanical design allow easy integration into various laser-based processing machines, giving distortion-free materials processing.
The modular design with field replaceable RF power supply enables fast service at the customers’ site.
High-precision processing
Precise pulse control for cutting, scribing, engraving, marking and surface patterning
- The SR AOM sealed CO2 lasers create very short pulses with sharp rise/fall times
- Ideal for sensitive applications which require less thermal damage
- Minimized heat-affected zone (HAZ)
- An improved cutting edge
- Less discoloration
- Reduced melted area
Discover the SR AOM laser series for your high-precision applications
High-precision processing
Microfilm cutting, scribing, engraving, marking and surface patterning with minimal HAZ

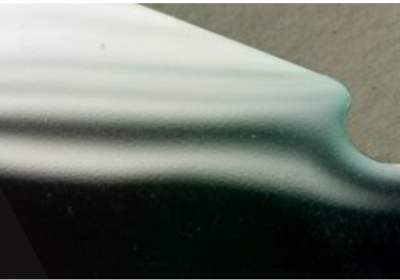

Flat panel display film cutting
SR AOM laser cuts polarized and capacitive films with lower HAZ and better edge quality than a standard CO2 laser. It also creates an easy-peel protection film layer by significantly reducing the melted area so that the film layers do not stick together.
Polymer-dispersed liquid crystal display (PDLCD) cutting
PDLCD screens can be used in various applications such as meeting room windows to provide privacy by changing between transparent and non-transparent states. Layers in the film are sensitive to heat which causes discoloration and poor edge quality if cut with a standard CO2 laser. When cutting with a 9.3 µm CO2 laser with AOM, edge quality is smooth and discoloration is greatly reduced.

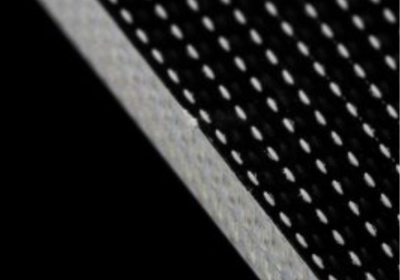

Backlight unit (BLU) patterning
A CO2 laser can be used with an AOM to create a consistent backlighting pattern on PMMA (acrylic) material. The AOM allows the user to control the energy within each pulse when processing in order to give uniform light distribution across the finished piece.

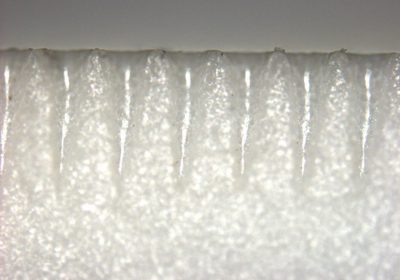

Scribing of brittle materials that need less HAZ like ceramics or graphite as used in electronics or battery cell manufacturing.
Advantages
AOM laser modulation up to 600 kHz with 60× faster rise and fall times
The AOM laser range provides superior pulse-to-pulse control, output power stability and an integrated and field-replaceable RF power supply for ease of installation and servicing at customer sites.
The SR AOM laser features a simple control interface. The compact mechanical design allows easy integration into various laser-based processing machines, giving distortion-free materials processing.
